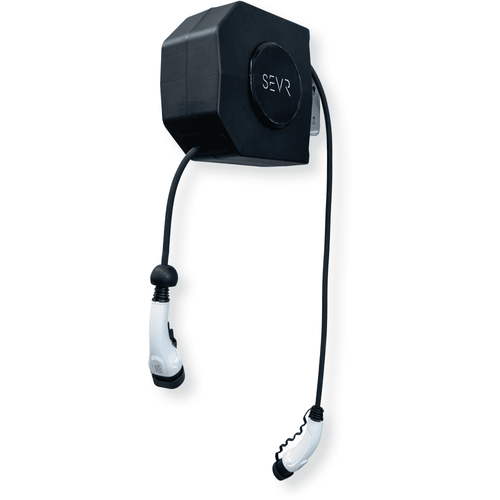

This retractable EV charging cable reel is an accessory for connecting compatible untethered EV chargers to electric vehicles, providing a streamlined and efficient power delivery solution. Engineered for high-performance applications, the unit supports a maximum output power of 22kW on a three-phase system or 7kW on a single-phase configuration, operating at a current of 32A and voltages up to 480V. The integrated Type 2 male and female connectors ensure broad compatibility with modern electric vehicle infrastructure, while the 4.5-meter retractable output cable offers significant reach for various parking arrangements.

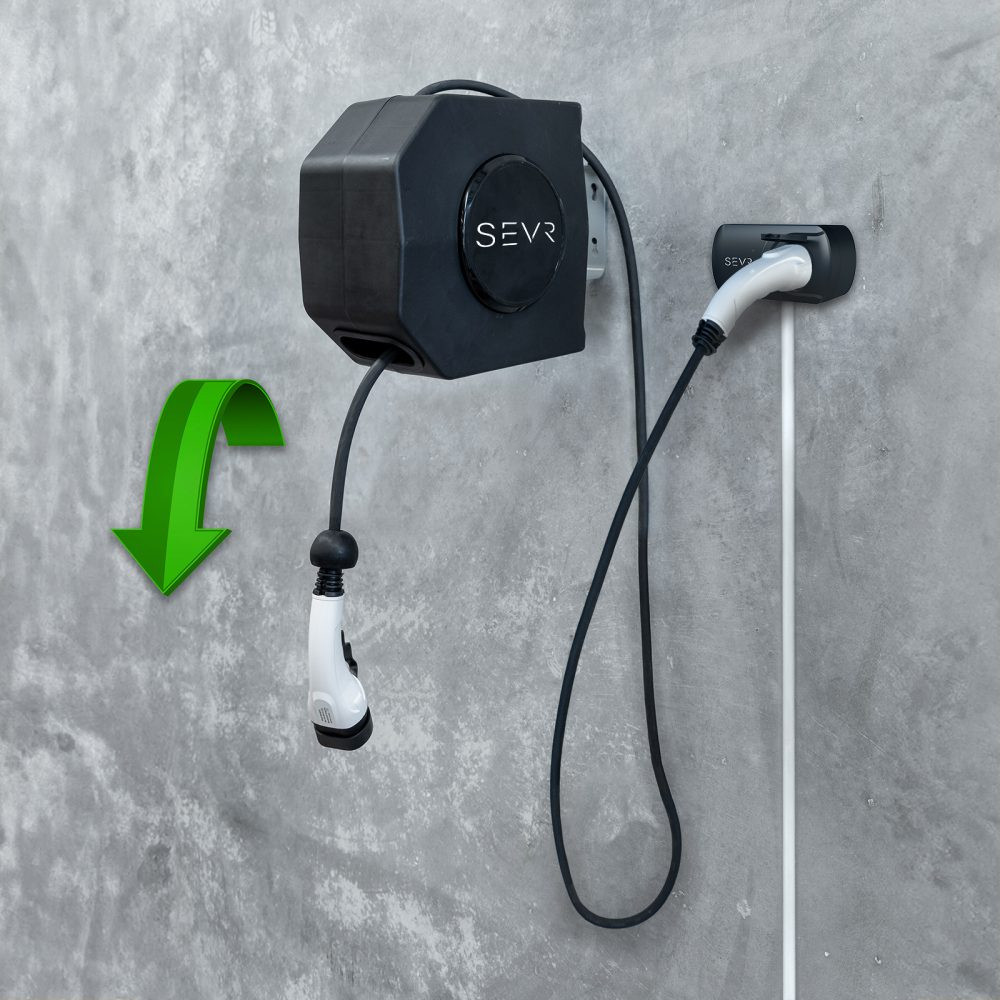

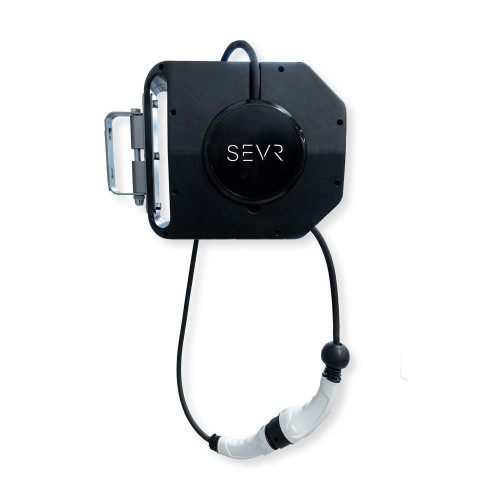

Constructed with a robust glass-fibre-reinforced polypropylene housing, this wall-mounted reel is designed for durability and long-term reliability in demanding environments. The internal mechanism features an automatic winding function that efficiently retracts the TPE and TPU cable into the protective housing, preventing cable clutter and reducing trip hazards. The unit also incorporates a swivel range of approximately 130 degrees, allowing for flexible positioning and ease of use during the connection process in residential or commercial garages.
Technical specifications include an IP20 rating for the reel housing, making it suitable for indoor installations, while the charging cable itself carries an IP55 rating to ensure protection against dust and low-pressure water ingress during operation. The system is designed to function across a wide thermal spectrum, with an operating temperature range from -35C to +50C, ensuring consistent performance in diverse climates. Weighing 9kg and measuring 301mm by 185mm by 351mm, the compact form factor is easily installed using the two included screws for secure mounting to vertical surfaces.
Safety and maintenance are paramount, and this product includes a three-year limited warranty to guarantee quality and peace of mind for the user. It is essential to adhere to the installation guidelines, which specify that the device should not be used with extension cords or placed near running water, water jets, or flood-prone areas to maintain electrical integrity. This sophisticated charging accessory represents a high-quality solution for EV owners seeking a tidy, professional, and high-capacity charging interface that simplifies the daily routine of vehicle electrification.
PRODUCT TYPE: Retractable EV Charging Cable Reel
APPLICATIONS: Connects compatible untethered EV chargers to electric vehicles
WARRANTY: 3 years (limited)
COLOUR: Black
MATERIAL: Glass-fibre-reinforced PP housing; TPE/TPU cable
IP RATING: IP20 (reel housing, indoor use); IP55 (charging cable)
VOLTAGE: Up to 480V
OUTPUT POWER: 22kW (three phase); 7kW (single phase)
CURRENT: 32A at 480V
CONNECTORS: Type 2 male plug; Type 2 female plug
CABLE LENGTH: 1m (input); 4.5m (retractable output)
DIMENSIONS: 301mm (length) x 185mm (width) x 351mm (height)
WEIGHT: 9kg
SWIVEL RANGE: Approximately 130°
MOUNTING: Wall-mounted
OPERATING TEMPERATURE: -35°C to +50°C
INSTALLATION: Includes 2 screws
FEATURES: Retractable reel automatically winds the cable into the housing
REMARKS: Do not use with an extension cord or install near running water, water jets or flood-prone areas
