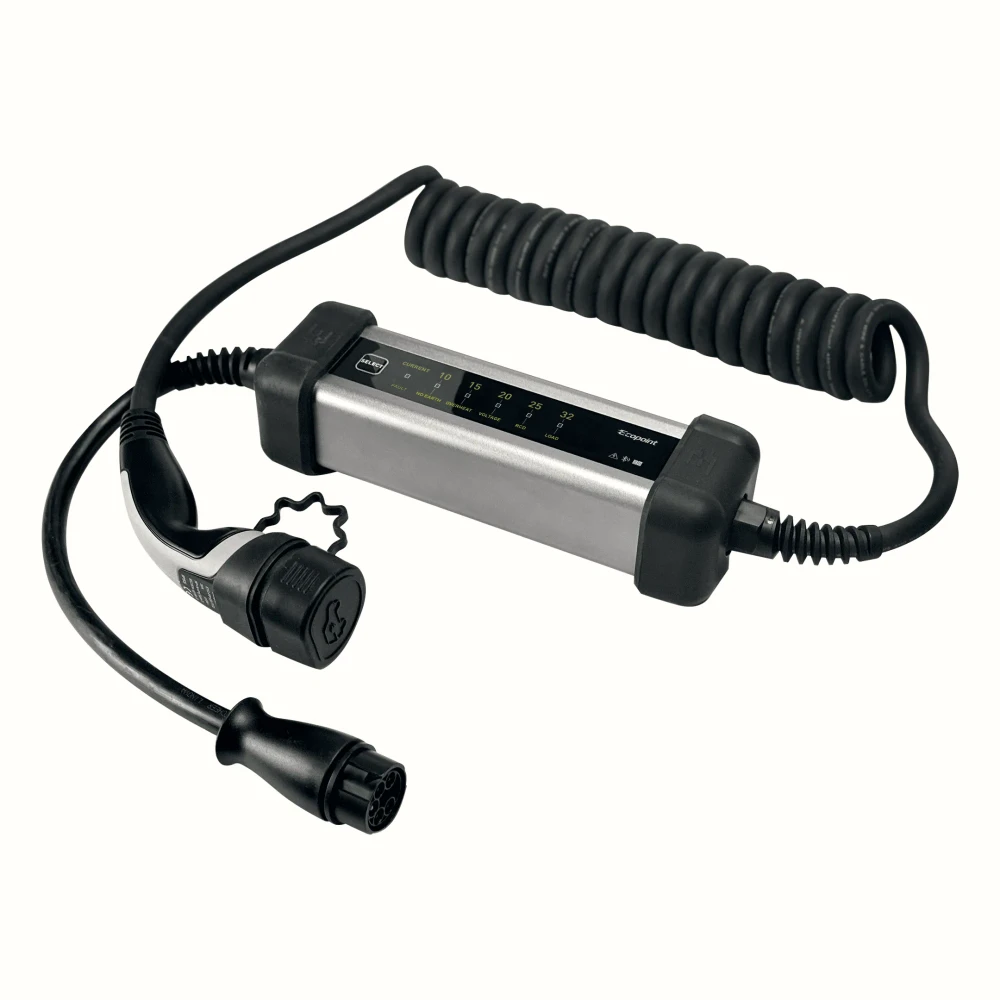

This electric vehicle charger portable solution provides a versatile and high-performance charging interface for residential, workplace, and travel applications. Engineered for maximum flexibility, the system supports a wide voltage range from 220V to 415V AC and delivers an adjustable output power between 2.3kW and 22kW. The unit features a Type 2 charging connector and is supplied with four Australian female adaptors, including 32A 5-pin, 32A 3-pin, 15A 3-pin, and 10A 3-pin configurations, ensuring compatibility across various power sources without the need for professional electrical installation.
Constructed with an anodised aluminium enclosure and a durable TPU cable, the hardware is designed to withstand rigorous environmental conditions. The main charger unit carries an IP66 ingress protection rating, while the Type 2 cable is rated at IP55, complemented by an IK10 impact resistance rating for superior mechanical durability. Operating effectively within a temperature range of -30C to +50C, the device incorporates comprehensive safety mechanisms, including a 30mA Type A RCD with 6mA DC protection, alongside integrated safeguards against overload, short-circuit, overcurrent, and overheating.
User interaction is facilitated through a plug-and-play interface where the charging current can be manually adjusted from 8A to 32A using a dedicated select button or via a Bluetooth-enabled mobile application. This connectivity allows for precise control and monitoring of the charging process, providing up to nine times faster charging speeds compared to standard domestic outlets. The inclusion of wall-mounting accessories and a dedicated storage bag further enhances the utility of the system, making it an ideal choice for both stationary home use and off-grid mobile requirements.
Compliance with international standards such as IEC 61851-1 and IEC 62752 ensures that this charging system meets stringent safety and performance benchmarks for electric vehicle conductive charging. The integration of nylon and PVC adaptors rated to UL94 V-0 standards highlights the commitment to fire safety and material integrity. Backed by a three-year limited warranty, this portable EV charger represents a reliable, long-term investment for electric vehicle owners seeking a robust and adaptable charging infrastructure that bridges the gap between fixed wallboxes and mobile convenience.
PRODUCT TYPE: Portable EV Charger
APPLICATIONS: Home, workplace, travel and camping
WARRANTY: 3 years (limited)
COMPLIANCE: IEC 61851-1:2017; EN 61851-1:2019; EN IEC 61851-21-2:2021; EN 300 328 V2.2.2; EN 301 489-1 V2.2.3; EN 301 489-17 V3.2.4; EN 62479:2010; IEC 62955:2018; IEC 62752:2016
MATERIAL: Anodised aluminium enclosure; TPU cable; nylon and PVC adaptors (UL94 V-0)
IP RATING: IP66 (charger unit); IP55 (Type 2 cable)
IK RATING: IK10
VOLTAGE: 220V-415V AC, 50/60Hz (depending on adaptor and phase)
OUTPUT POWER: 2.3kW-22kW (depending on adaptor and phase)
CURRENT: 8A-32A (adjustable)
CHARGING CONNECTOR: Type 2
CABLE LENGTH: 0.9m (input); 5m (output)
CONNECTIVITY: Bluetooth
DIMENSIONS: 328mm (length) x 72mm (width) x 87mm (height)
WEIGHT: 9.14kg
OPERATING TEMPERATURE: -30°C to +50°C
PROTECTION: 30mA Type A RCD with 6mA DC protection; overload, short-circuit, overcurrent and overheat protection
INSTALLATION: Portable or wall-mounted; no electrician required

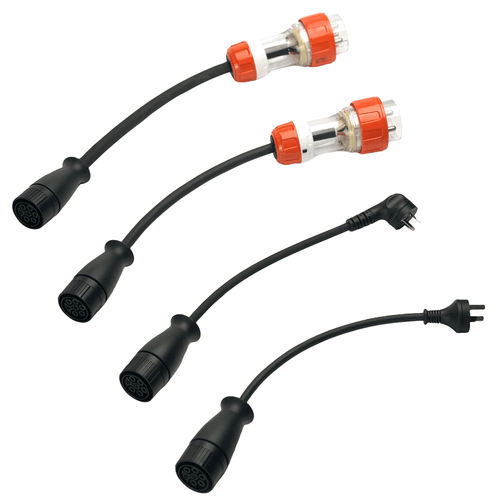

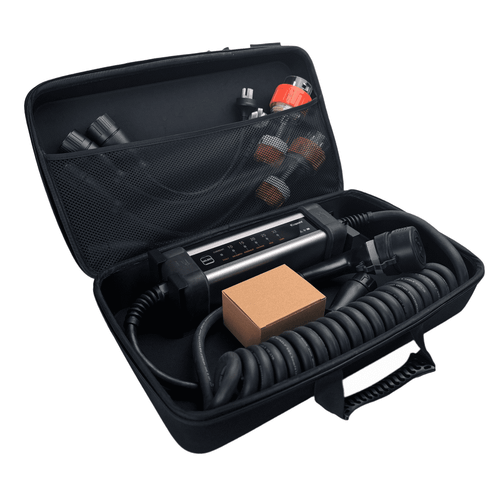

ACCESSORIES: 4 Australian female adaptors (32A 5-pin; 32A 3-pin; 15A 3-pin; 10A 3-pin); wall-mounting accessories; storage bag
OPERATION: Plug and play; charging current adjustable using the SELECT button; Bluetooth app control
FEATURES: Up to 9× faster charging; suitable for off-grid use
