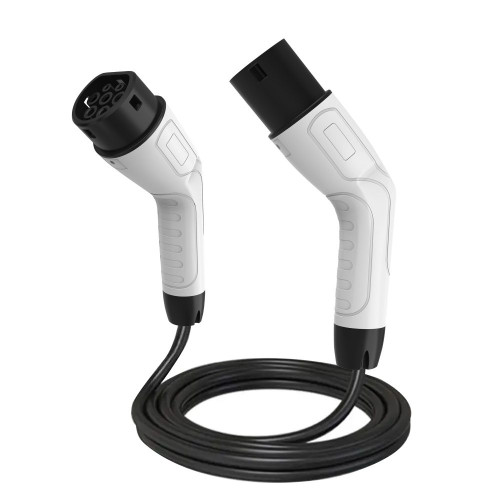

This EV charging cable is engineered to provide a high-performance connection between Type 2 electric vehicles and compatible charging infrastructure for both residential and public applications. Utilizing a single-phase configuration, the assembly supports a maximum output power of 7kW at a current of 32A within a voltage range of 220-250V AC. The integration of silver-plated copper alloy pins ensures optimal electrical conductivity and long-term durability, while the insulation resistance exceeding 1000MΩ at 500V DC guarantees superior dielectric performance.
Constructed with advanced materials, the cable features a flame-retardant TPU jacket rated to UL94 V-0 standards and robust ABS and PC plugs designed to withstand rigorous daily use. The 7-meter length provides significant reach and flexibility, facilitating convenient access to charging points in various environments. With an IP55 rating, the unit offers substantial protection against dust ingress and low-pressure water jets, ensuring reliable operation in diverse weather conditions and outdoor settings.
Technical reliability is further reinforced by a withstand voltage of 2000V and a broad operational temperature range from -30°C to +50°C, allowing for consistent power delivery in extreme climates. The inclusion of a dedicated carry bag enhances portability and protects the connectors when not in use, maintaining the integrity of the Type 2 male and female plugs. This comprehensive charging solution is backed by a three-year limited warranty, reflecting its status as a dependable component for everyday electric vehicle charging.
Safety and maintenance protocols dictate that this cable must not be utilized with extension cords or modified in any capacity to preserve its structural and electrical integrity. Users should perform regular inspections to ensure the cable and connectors remain free from damage before initiating a charge cycle. By adhering to these professional standards and utilizing high-grade materials, this charging cable serves as a critical interface for efficient energy transfer, meeting the demanding requirements of contemporary electric mobility.
PRODUCT TYPE: EV Charging Cable
APPLICATIONS: Home and public charging with compatible Type 2 chargers and electric vehicles
WARRANTY: 3 years (limited)
MATERIAL: Copper alloy, silver-plated pins; ABS+PC plugs; flame-retardant TPU cable (UL94 V-0)
IP RATING: IP55
VOLTAGE: 220-250V AC
MAX OUTPUT POWER: 7kW
PHASE: Single phase
CURRENT: 32A
CABLE LENGTH: 7m
CONNECTORS: Type 2 male plug; Type 2 female plug
INSULATION RESISTANCE: >1000MΩ (DC 500V)
WITHSTAND VOLTAGE: 2000V
WORKING TEMPERATURE: -30°C to +50°C
TERMINAL TEMPERATURE RISE: >300N
ACCESSORIES: Carry bag
REMARKS: Do not use with an extension cord or if the cable or connectors are damaged. Do not open or modify the product.
