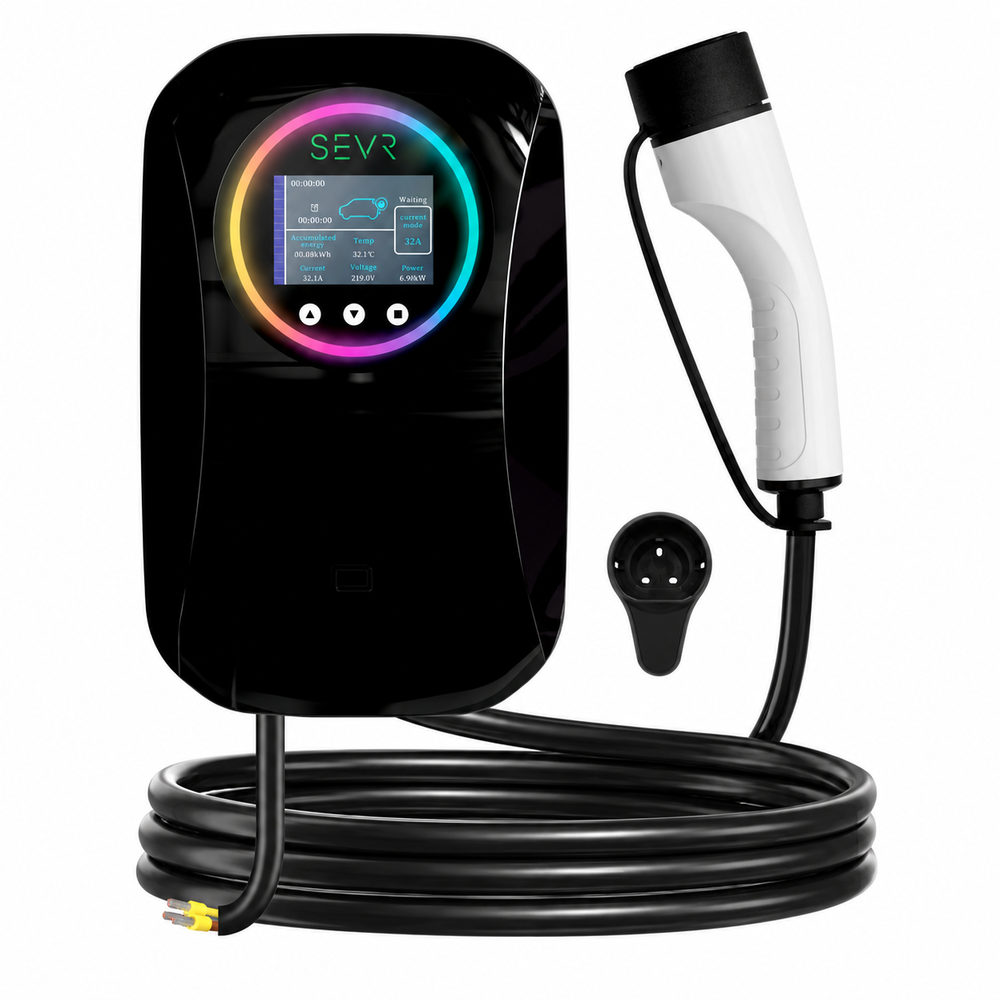

This electric vehicle charger is a high-performance solution designed for residential and light commercial applications including homes, apartments, and small businesses. Engineered for efficiency, the unit features a 7kW power output and a Type 2 charging socket, operating within a voltage range of 110V-240V AC at 50/60Hz. The system maintains a driver efficiency of at least 99.8% under full load while total power consumption of 5W or less, ensuring optimal energy management.
Constructed with a robust IP54 weather-resistant rating, this wall-mounted or pole-mounted unit is designed to withstand diverse environmental conditions with an operational temperature range from -30 to +50 degrees Celsius. The physical dimensions of 340mm in height, 220mm in width, and 100mm in depth provide a compact footprint for versatile installation. Safety is prioritized through RCM certification and the inclusion of built-in RDC-DD protection, an emergency stop button, and an earth leakage current threshold of 30mA or less.
Technical features include an adjustable charging current ranging from 8A to 32A and a sophisticated scheduling system that allows for delayed starts in 30-minute increments up to 24 hours. The interface utilizes an LED light ring status indicator for real-time monitoring of the charging process, providing clear visual feedback to the user. The plug-and-play functionality is complemented by a 4.2m tethered Type 2 charging cable and a 0.5m input cable, facilitating a streamlined user experience for various electric vehicle models.
Installation must be performed by a licensed electrician in strict accordance with AS/NZS 3000 standards to ensure compliance and operational safety. The package includes essential accessories such as a cable hanger, mounting bracket, and a comprehensive hardware kit for secure deployment. This charging station represents a reliable and technologically advanced infrastructure component for modern electric vehicle support, backed by a three-year parts-only warranty to ensure long-term performance and durability.
PRODUCT TYPE: Electric Vehicle Charger
APPLICATIONS: Homes; apartments; rental properties; workplaces; small businesses
WARRANTY: 3 years (parts only)
COMPLIANCE: RCM certified; installation in accordance with AS/NZS 3000
COLOUR: Black
IP RATING: IP54 (weather-resistant)
VOLTAGE: 110V-240V AC (50/60Hz)
WATTAGE: 7kW
DIMENSIONS: 340mm (height) x 220mm (width) x 100mm (depth)
WEIGHT: 4kg
MOUNTING: Wall-mounted or Pole-mounted
WORKING TEMP: -30°C to +50°C
DRIVER EFFICIENCY UNDER FULL LOAD: ≥99.8%
CHARGING OUTLET: Type 2 socket
TOTAL POWER CONSUMED: ≤5W
INRUSH CURRENT: 30mA at 240V
EARTH LEAKAGE CURRENT: ≤30mA
SUITS CABLE: 3x6mm²
INSTALLATION: Must be installed by a licensed electrician
ACCESSORIES: 0.5m input cable; 4.2m tethered Type 2 charging cable; cable hanger; mounting bracket and hardware kit
FEATURES: Plug and play; real-time monitoring; adjustable charging current (8A to 32A); scheduled charging with delayed start (0 to 24 hours in 30-minute increments); LED light ring status indicator; emergency stop button; built-in RDC-DD protection
REMARKS: Cannot be installed in South Australia under current regulatory requirements; store in dry conditions, as humidity can damage the unit; do not immerse or charge in heavy rain
