This electric vehicle charger is a high-performance 22kW three-phase charging solution designed for both residential and commercial applications. Operating at 400V AC with a 32A output current, the unit achieves a driver efficiency of at least 99% under full load conditions. The system is housed in a compact enclosure measuring 265mm in height and 200mm in length, engineered to withstand diverse environmental conditions with an IP65 weatherproof rating and an IK08 impact resistance certification. It features a Type 2 socket outlet and is compatible with wall-mounted or pole-mounted installation configurations.
Technical safety and protection are prioritised through integrated Type A 30mA and DC 6mA earth leakage protection, ensuring compliance with rigorous electrical safety standards. The device supports a wide operating temperature range from -30C to +50C, making it suitable for various climates and demanding installation environments. Installation requires a Type A RCBO in the switchboard, and the unit is compatible with 5 x 6mm2 + 1 x 0.5mm2 cabling. The inclusion of built-in RDC protection further enhances the operational reliability of the charging infrastructure.
Advanced connectivity options including Bluetooth, Wi-Fi, 4G, and Ethernet enable seamless integration with smart management systems via OCPP 1.6J compatibility. Users can leverage smart mobile app control for remote monitoring, multi-scheduling, and adjustable charging current to optimise energy consumption. The system also supports RFID access control, with two cards included in the box, providing secure and managed access to the charging interface. These digital features facilitate comprehensive oversight and control of the charging process for individual or fleet management purposes.
Energy efficiency is maximised through solar-optimised charging capabilities and an optional dynamic load balancing module, allowing for intelligent power distribution based on real-time demand. The unit is supplied with a comprehensive installation kit, mounting bracket, and hardware to streamline the setup process. With a three-year warranty and a robust design, this electric vehicle charger represents a reliable and future-proof investment for modern electric mobility infrastructure. The optional CT module further extends the system's functionality for advanced solar integration and load management.
PRODUCT TYPE: Electric Vehicle Charger
APPLICATIONS: Homes; commercial applications
WARRANTY: 3 years
COMPLIANCE: Australian safety compliant
COLOUR: Black
IP RATING: IP65 (fully weatherproof)
IK RATING: IK08
VOLTAGE: 400V AC three-phase (50/60Hz)
WATTAGE: 22kW
OUTPUT CURRENT: 32A
DRIVER EFFICIENCY UNDER FULL LOAD: ≥99%
EARTH LEAKAGE CURRENT: Type A 30mA + DC 6mA

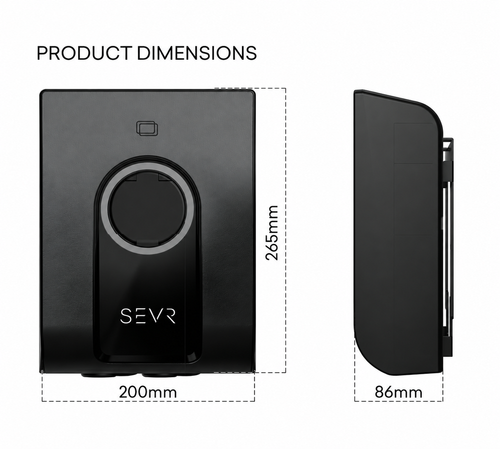

DIMENSIONS: 265mm (height) x 200mm (length) x 86mm (depth)
WEIGHT: 2.43kg

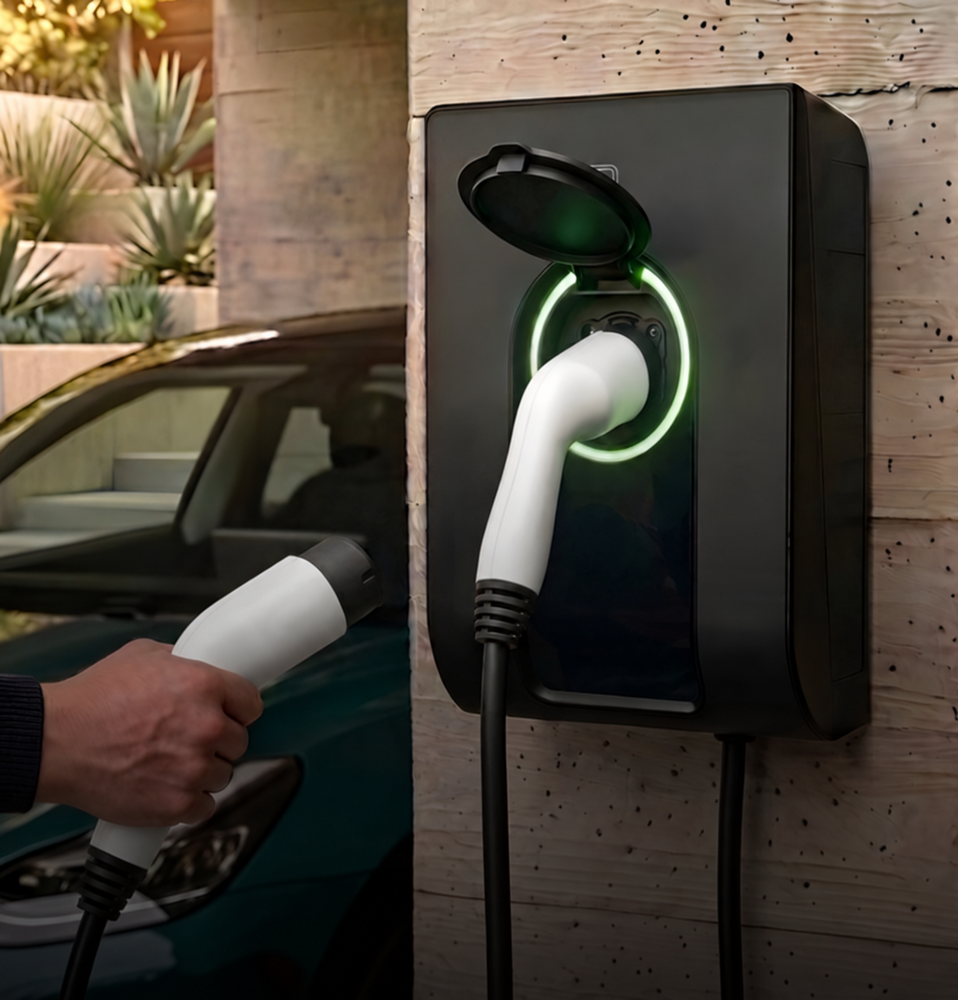

MOUNTING: Wall-mounted or pole-mounted
WORKING TEMP: -30°C to +50°C
CHARGING OUTLET: Type 2 socket
CONNECTIVITY: Bluetooth; Wi-Fi; 4G; Ethernet
SUITS CABLE: 5 x 6mm² + 1 x 0.5mm²
MOUNTING HEIGHT: 0.5m-1.5m from the ground (recommended)
INSTALLATION: Must be installed by a licenced electrician in accordance with AS/NZS 3000; Type A RCBO required in switchboard
IN THE BOX: EV charger; installation kit; 2 RFID cards; instruction manual; mounting bracket and hardware kit
FEATURES: Smart mobile app control; remote monitoring; adjustable charging current; multi-scheduling; RFID access control; solar-optimised charging; dynamic load balancing option; OCPP 1.6J compatibility; built-in RDC protection
REMARKS: Water-resistant (do not immerse it or charge in heavy rain)
LEADS: Use a compatible Type 2 charging cable connected directly to the vehicle (do not use Type 2 extension leads or conversion adaptors)
COMPLIANCE: Australia-wide including South Australia
