This electric vehicle portable charger provides a versatile and efficient charging solution for compatible electric vehicles and plug-in hybrids, engineered for both residential and travel applications. Operating within a voltage range of 110-250V AC at a frequency of 50/60Hz, this unit delivers a consistent 2.4kW power output at a 10A current. The integration of an Australian standard 10A input plug and a Type 2 charging connector ensures seamless compatibility with local infrastructure and modern vehicle standards.
Constructed from high-grade UL94 V-0 flame-retardant plastic, the device is designed to withstand rigorous environmental conditions while maintaining structural integrity. The control box features an IP66 ingress protection rating, while the charging handle is rated at IP55, providing robust resistance against dust and moisture. Furthermore, the unit boasts an IK10 impact rating, signifying superior mechanical durability and protection against external kinetic energy, making it ideal for portable use in various settings.
Safety is prioritized through a comprehensive suite of protective mechanisms, including leakage, overcurrent, overvoltage, undervoltage, and overtemperature protection at both the plug end and the control box. The 4.5m cable offers significant reach for flexible positioning during charging sessions, and the entire assembly weighs only 1.85kg for enhanced portability. This plug-and-play system requires no complex installation, allowing users to initiate charging immediately upon connection to a standard power outlet.

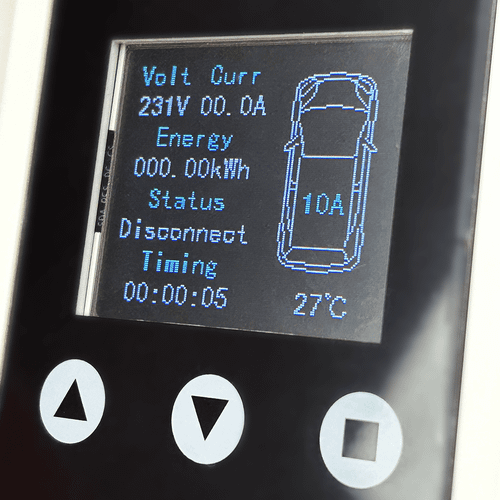

Advanced functional features include a high-resolution colour screen and intuitive onboard controls that allow for precise monitoring and management of the charging process. An adjustable timer provides users with the ability to schedule charging cycles according to specific requirements or off-peak energy rates. Accompanied by a dedicated carry bag for secure storage and transport, this portable charger is backed by a 3-year limited warranty, ensuring long-term reliability and performance for electric vehicle owners.
PRODUCT TYPE: EV Portable Charger
APPLICATIONS: Portable charging for compatible electric vehicles and plug-in hybrids; suitable for home and travel use
WARRANTY: 3 years (limited)
MATERIAL: Flame-retardant plastic (UL94 V-0)
IP RATING: IP66 (control box); IP55 (charging handle)
IK RATING: IK10
VOLTAGE: 110-250V AC 50/60Hz
WATTAGE: 2.4kW
CURRENT: 10A
INPUT PLUG: Australian standard 10A plug
CHARGING CONNECTOR: Type 2
CABLE LENGTH: 4.5m
PROTECTION: Leakage; overcurrent; overvoltage; undervoltage; overtemperature (plug end and control box)
INSTALLATION: Portable; plug and play
WEIGHT: 1.85kg
ACCESSORIES: Carry bag
FEATURES: Colour screen; onboard controls; adjustable timer
